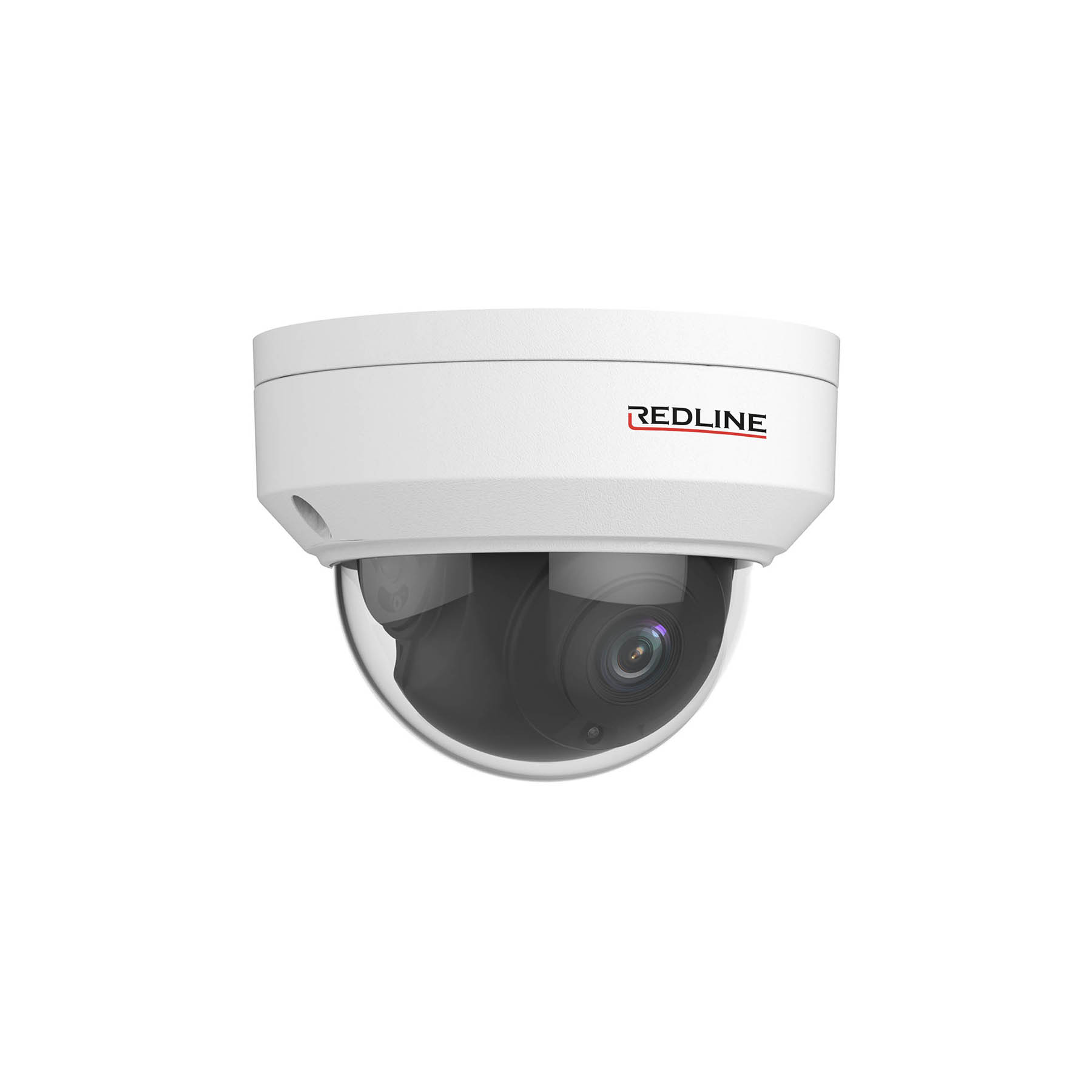

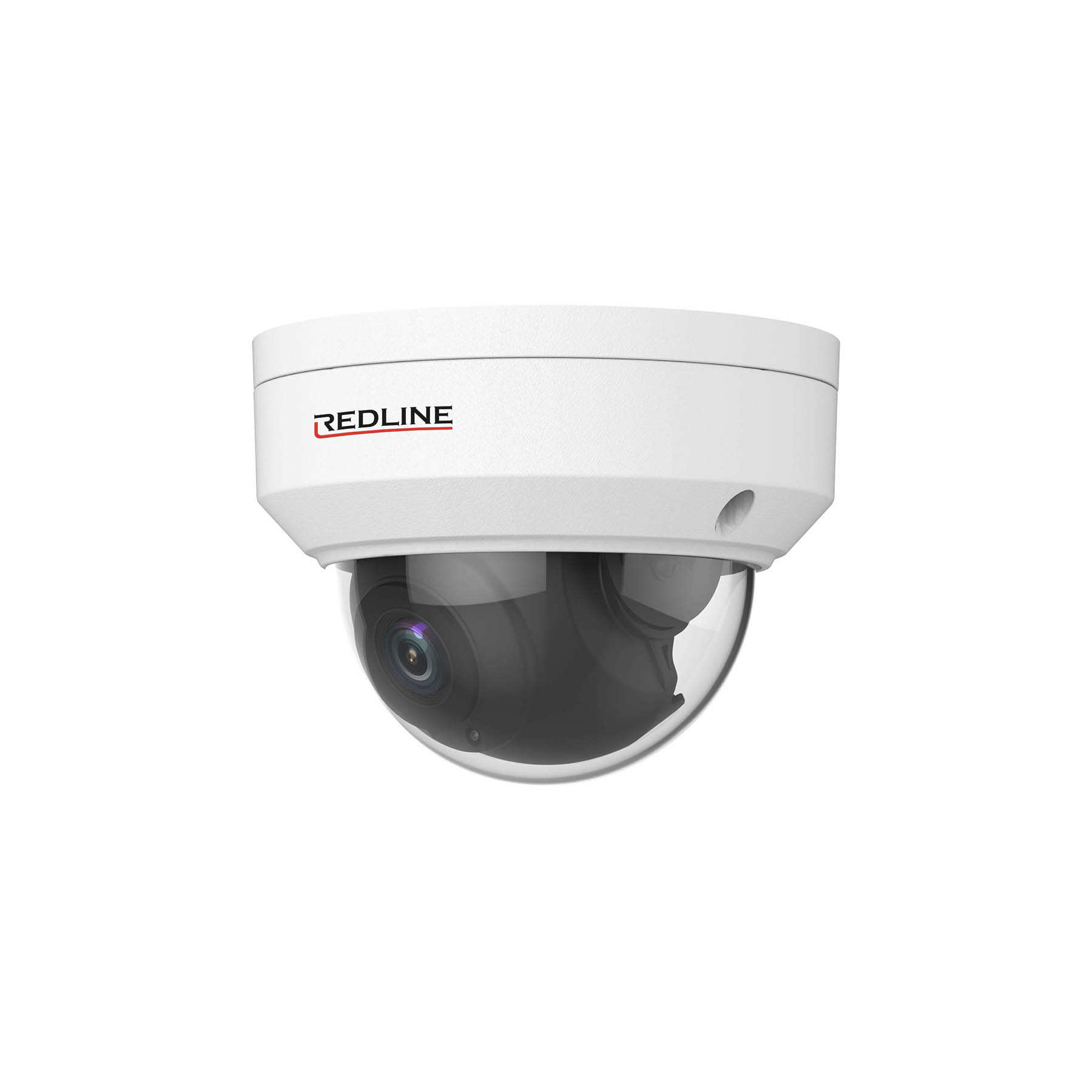

8MP 4K Vandal-resistant Network IR Fixed Dome Camera
IPC-865U
Ksh16999.00
Experience ultimate surveillance with the IPC-865U, an 8MP 4K vandal-resistant network IR fixed dome camera. Featuring day/night functionality, Smart IR up to 30m, advanced 2D/3D Digital Noise Reduction, and Ultra 265, H.265, H.264, MJPEG support, this camera delivers crystal-clear images in any lighting. Its robust metal dome case, triple streams, ROI, ONVIF conformance, and IK10 & IP67 ratings guarantee outstanding durability and reliability. Wide temperature and voltage range, region of interest, motion detection, and powerful surge protection make the IPC-865U ideal for demanding environments. Easy to install with a 3-axis adjustment. Certified and ready for integration, it’s the professional choice for secure premises.
Day/night functionality
Smart IR, up to 30m (98ft) IR distance
2D/3D DNR (Digital Noise Reduction)
Ultra 265, H.265, H.264, MJPEG |
Triple streams
ROI (Region of Interest)
ONVIF Conformance
IK10 vandal resistant
IP67
3 Axis
Wide temperature range: -30 °C~ 60 °C, humidity is less than 90% (no condensation)
Wide voltage range of +- 20%
Model Name | IPC-865U |
Case | Metal-Dome |
Camera | |
Sensor | 1/3", 8.0 megapixel, progressive scan, CMOS |
Lens | 4.0mm@F2.1 |
DORI Distance | Lens (mm) 4.0, Detect (m) 120, Observe (m) 48, Recognize (m) 24, Identify (m) 12,01 |
Angle of View (H) | 86.5° |
Angle of View (V) | 44.1° |
Angle of View (O) | 106.4° |
Adjustment angle | Pan: 0° ~ 360° |
Shutter | Auto/Manual, 1 ~ 1/100000s |
Minimum Illumination | Colour: 0.05 Lux (F2.0, AGC ON) |
0Lux with IR | |
Digital noise reduction | 2D/3D DNR |
Day/Night | IR-cut filter with auto switch (ICR) |
S/N | >56dB |
IR On/Off Control | Auto/Manual |
Wavelength | 850nm |
IR Range | Up to 30m (98ft) IR range |
Defog | Digital Defog |
WDR | 120dB |
Video | |
Video Compression | Ultra 265, H.265, H.264, MJPEG |
H.264 code profile | Baseline profile, Main Profile |
Frame Rate | Main Stream:8MP (3840*2160): Max. 20 fps;5MP(2944*1656): Max. 30 fps; 4MP(2560*1440): Max. 30 fps; |
Video Bit Rate | 128 Kbps~16 Mbps |
OSD | Up to 4 OSDs |
Privacy Mask | Up to 4 areas |
ROI | Up to 2 areas |
Motion Detection | Up to 4 areas |
Image | |
White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
Digital noise reductionDigital noise reduction | ONVIF (Profile S, Profile T), API |
Smart IR | Support |
BLC | Supported |
HLC | Supported |
Supported | |
Flip | Normal/Vertical/Horizontal/180° |
Dewarping | NA |
Network | |
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL,QoS |
Compatible Integration | ONVIF (Profile S, Profile T), API |
Client | RedOn Pro |
Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below |
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | |
Interface | |
Network | 10/100M Base-TX Ethernet |
Certifications | |
Certifications | CE: EN 60950-1 |
UL: UL60950-1 | |
FCC: FCC Part 15 | |
General | |
Power | DC12V±25%, PoE (IEEE802.3 af) |
Power consumption: Max 5.5W | |
Dimensions (Ø x H) | Φ108.7 x 81.1mm (Ø4.3” x 3.2”) |
Net Weight | 0.45kg (0.99lb) |
Surge Protection | 2KV |
Ingress Protection | IP67 |
Vandal Resistant | IK10 |
