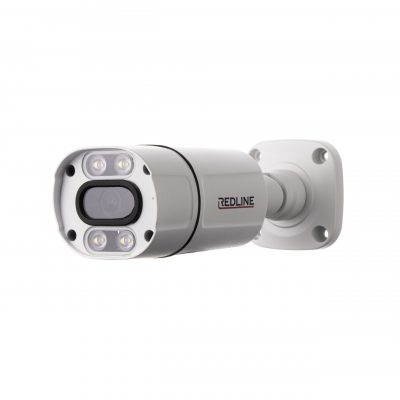

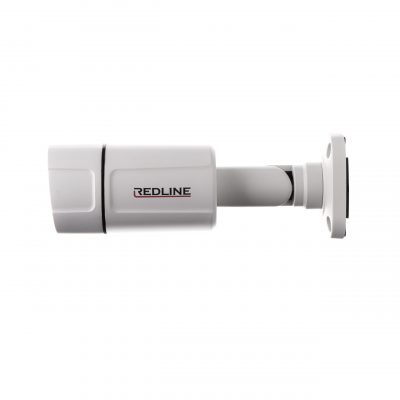

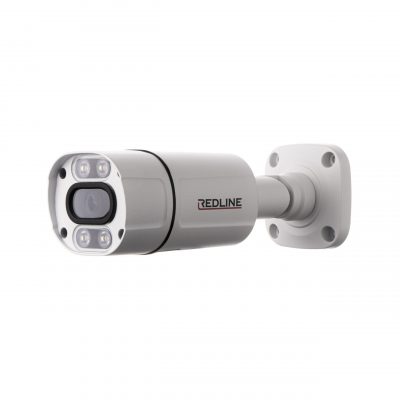

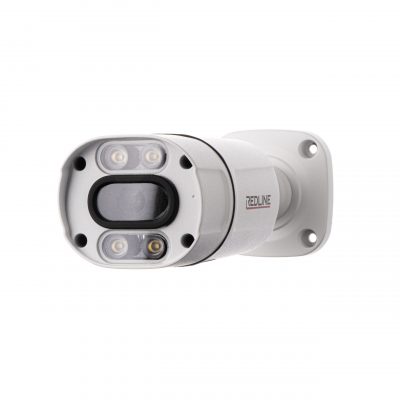

5MP 4 in 1 AHD Camera
WP-553-S
Ksh3999.00
Support 4 in 1 Coaxial high-definition output for excellent performance with clear and bright pictures. Utilizes a 5MP high-definition CCTV camera module to capture moving images. Features adaptive digital noise reduction (2D-DNR), warm light LED for vivid night colors, OSD support for custom settings, convenient coaxial upgrade, and intelligent infrared/white light dual-light switching. Equipped with Sony IMX335 5MP sensor, wide temperature range (-10°C~60°C), and auto light intensity adjustment. Compatible with AHD/TVI/CVI/CVBS signals. Metal bullet case and efficient design for reliable security.
Support 4 in 1 Coaxial high-definition output, with excellent performance, clear and bright picture
Use 5MP high-definition CCTV camera module, captured moving images
Adaptive Digital Noise Reduction, 2D-DNR
Support OSD, Suitable for user-defined Settings;
Support coaxial upgrade, version upgrade convenient and efficient;
4PCS Warm Light LED makes your surveillance screen full of colors at night;
Support AHD/TVI/CVI/CVBS signal;
Use Sony IMX335 5MP Sensor;|
Auto adjust the light intensity according to the environment.
Infrared/white light dual-light intelligent switching
Wide temperature range: -10 °C~ 60 °C, humidity is less than 90% (no condensation)
Wide voltage range of +- 20%
Case | Metal-Bullet |
Sensor | 1/2.8” IMX335 |
DSP | FH8538M |
System | PAL/NTSC |
Effective Pixel | 2560(H)x1920(V) 5mp 4:3 |
2560(H)x1440(V) 4mp 16:9 | |
Illumination | 0.01Lux@(F1.2,AGC ON),0LUX with IR |
Shutter | AUTO |
D/N | EXT(Default)/COLOR/B/W |
Synchronously | Internal |
FPS | 5MP@20fps/12.5fps / 4MP@25fps/30fps/15fps |
Video output | AHD/TVI/CVI can be switch |
Exposure | Shutter/AGC/Brightness |
AWB | ATW/MWB |
DAY-NIGHT | INFRARED/COLOR/B&W |
Video Setting | Contrast/Sharpness/Color Gain/DNR |
Video Output | AHD:5MP20/12.5/4MP25/30/15,CVBS:PAL/NTSC |
TVI:5MP20/12.5/4MP25/30/15,CVI:4MP25/30 | |
Language | Chinese/English |
Operation Temperature | -20℃ to 60℃ |
Working Humidity | Relative humidity less than90 % |
Power | DC12V(±20%) - 70MA |
Size | 32*32/38*38(mm) |
