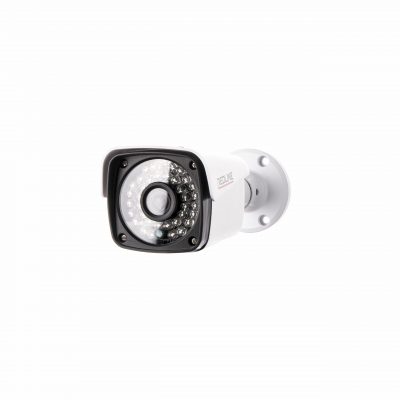

5 MP 4 in 1 AHD Camera
WP-5SC36
Ksh3999.00
This 5 MP 4 in 1 AHD Camera supports Coaxial high-definition output with clear, bright images. Features a 5MP high-definition CCTV camera module, adaptive digital noise reduction, OSD support through the back-end, convenient coaxial upgrade, IR-CUT with CDS external control, and compatibility with XVI/AHD/TVI/CVI DVRs. Offers NTSC & PAL dual mode switching and high-definition quality at a competitive price. Dual-light intelligent switching for infrared and white light, wide temperature range (-10°C~60°C), and durable metal bullet case.
Support 4 in 1 Coaxial high-definition output, with excellent performance, clear and bright picture
Use 5MP high-definition CCTV camera module, captured moving images
Adaptive Digital Noise Reduction, 2D-DNR
Support UTC, enable OSD by the back-end;
Support coaxial upgrade, version upgrade convenient and efficient;
Support IR-CUT, CDS external control, D/N;
Support XVI/AHD/TVI/CVI DVR;
NTSC&PAL 2 in 1, easy to switch through back-end;
High-definition quality products with competitive price.
Infrared/white light dual-light intelligentswitching
Wide temperature range: -10 °C~ 60 °C, humidity is less than 90% (no condensation)
Wide voltage range of +- 20%
Case | Metal-Bullet |
Sensor | 1/2.5"JX-K03 |
System | PAL/NTSC |
Effective pixels | 2704(H)x1950(V) |
Illumination | 0.1Lux@(F1.2,AGC ON),0LUX with IR |
Shutter | AUTO |
D/N | EXT(Default)/COLOR/B/W |
Synchronously | Internal |
FPS | 5.0MP@20fps / 5.0MP@15fps |
Video output | AHD/TVI/CVI/CVBS switch |
Exposure | BRIGHTNESS / EXPOSURE MODE / GAIN |
BW | ATW/MWB |
D/N MODE | Infrared/COLOR/B&W |
Video Setting | Contrast/Sharpness/COLOR GAIN/DNR |
Language | CHINESE/ENGLISH |
Operation Temperature | -20℃ to 60℃ |
Operation humidity | Relative humidity less than 90 % |
Power | DC12V(±20%) - 70MA |
Dimension | 32*32/38*38(mm) |
